KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)

KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)
Kress

KR174E.1 Kress RTKⁿ 5,000 m² robotic lawn mower with OAS (Obstacle Avoidance System)

Kress

Redefining precision in lawn care with Kress RTKⁿ technology, the KR174E.1 robotic lawn mower introduces satellite-guided, centimeter-level accuracy without the need for any property-specific stationary antennas. Equipped with dual-layer razor sharp blades and obstacle avoidance system, the KR174E.1 operates efficiently under any conditions.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Centimeter-level accuracy without station antenna in your property
  • Satellite-guided - no perimeter wire installation
  • Dual-layer razor-sharp blades for dense and overgrown grass
  • Integrated obstacle avoidance system
  • Multi-zone function with the ability to precisely navigate from one turf area to another
  • Dead reckoning for mowing even undershade (weak satellite signal)
  • Systematic coverage in parallel lines for maximum mowing efficiency
  • Auto-levelling cutting disc
  • Anti-theft protection
  • MAP™ (Mowing Action Plan) for advanced path optimization and dynamic adjustment technology

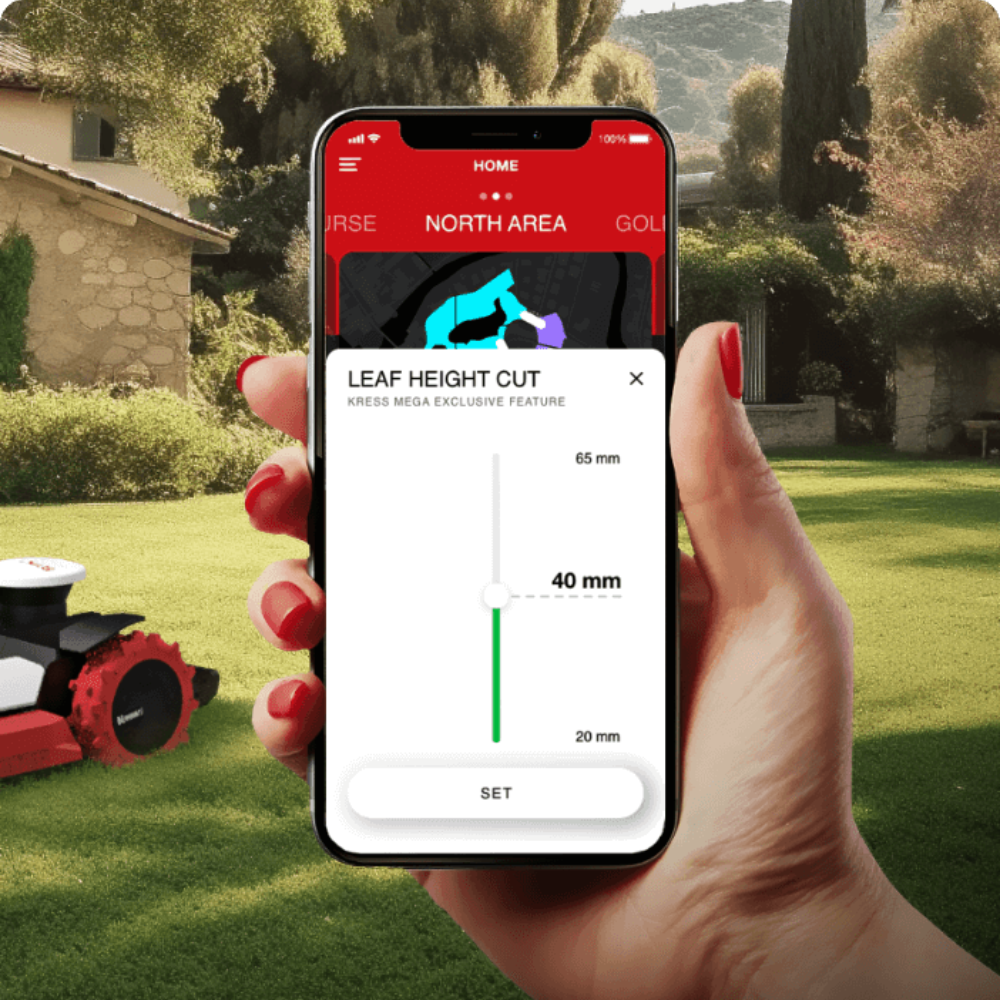

  • Electronic cutting height adjustment
  • RBS™ Regenerative Brake System for energy saving
  • Equipped with OAS (Obstacle Avoidance System)

General Features

  • App: ✓
  • Display: LCD
  • 4G: ✓
  • PIN code: ✓
  • Anti-theft system: ✓
  • Auto lock: ✓
  • Electric fence: ✓
  • Lift sensor: ✓
  • Low inertia blades: ✓

Cutting Specifications

  • Maximum area (cutting every 72h): 7000 ㎡
  • Recommended area (cutting every 48h): 5000 ㎡
  • Cutting width: 22 cm
  • Cutting height adjustment: Electronic
  • Cutting height range: 30 - 60 mm
  • Cutting methods: Logic
  • Cutting blades: 6
  • Double layer blades: ✓
  • Self-leveling blade disc: ✓

Navigation & Obstacle Avoidance

  • OAS (Obstacle Avoidance System): ✓
  • Forward and rotating: ✓
  • Navigation pattern: Systematic
  • Maximum slope: 40%

Battery & Power

  • Battery capacity: 6 Ah
  • Battery voltage: 20 V
  • Battery type: Li-Ion
  • Side charge: ✓

Connectivity & Updates

  • OTA (Over-The-Air): ✓
  • USB: ✓

Physical Specifications

  • Size: 647x470x290 mm
  • Weight: 12.6 kg
  • Front wheels: 2

Environmental & Durability

  • Weather resistant: ✓
  • Hose cleaning: ✓
  • Quick return: ✓
  • Water protection index (IP code): IPX5

Sound

  • Sound level perceived: 61 db

Lawn Size

  • Maximum lawn size: 7000 ㎡
  • Recommended lawn size: 5000 ㎡

Product Information

  • Model: Kress Mission RTKn 5000 KR174E.1

Included Accessories

  • Screws for fixing disk: 3
  • Screws for fixing blades: 18
  • Charging base: 1
  • Charging base fixing nails: 6
  • Hex keys: 1
  • Wrench for RTK antenna: 1
  • Magnetic strip: 1
  • Spare blades: 18
  • RTK antenna: 1
  • Pegs: 16
  • Hexagon screwdriver: 1
  • Measurement gauge: 2

Battery & Charging

  • Charging pile: 1
  • Battery pack (KA3006): 1
  • Charger (KA3719): 1

Owners manual

Agility meets precision

Kress Obstacle Avoidance System (OAS) ensures the mower navigates with precision around each challenge the terrain presents.

Daily fresh-
cut stripes

Impeccably aligned stripes

Satellite-guided centimeter-level accuracy

Kress's advanced network of base station antennas transmits precise correction data directly to each mower, ensuring unmatched precision for the cutting of every single blade of grass.

Master of
complexity

Guided by satellites
