Galaxy G5

$8,500.00
/
  • Available in 1-2 weeks
  • In stock, ready to ship
  • Backordered, shipping soon

The South G5 GNSS unit boasts integration with a state-of-the-art System on a Chip (SoC), offering several benefits including superior processing, low power consumption, effective interference signal suppression, and the ability to acquire top-quality observation data from satellite constellations.

Paired with Septentrio's latest Mosaic X5 1760 channel GNSS module, the G5 delivers centimeter-level precision within seconds. It achieves this remarkable accuracy by efficiently tracking signals from GPS, GLONASS, BEIDOU, GALILEO, and QZSS satellite systems.

The G5 receiver features a touch screen LED screen, Micro-SIM slot and a modem for 4G LTE/3G WCDMA/2G GSM connectivity, as well as Wi-Fi, Bluetooth, and a built-in VHF radio. Its IMU technology eliminates the need for precise receiver leveling, enhancing efficiency. Despite its power, the G5 is compact and lightweight at 1350 grams, with a 10000mAh battery, universal type-C interface, and incredible 25-hour operation.


Manufacturer: South
Board: Septentrio X5 Mosaic
Number of channels: 1760
Satellites: GPS, GLONASS, Galileo, Beidou (Compass), QZSS, SBAS
Operating mode: Statics, RTK, Stop&Go, PPK
Connectivity: 4G  Micro-sim, Wi-Fi, Bluetooth & VHF radio
IMU Tilt: Enabled
Weight: 1350 Grams
Battery: 25 Hours
Output: NMEA
Compatibility: 12d, Carlson Layout
Pole: CLS25 Included

Case: Included

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

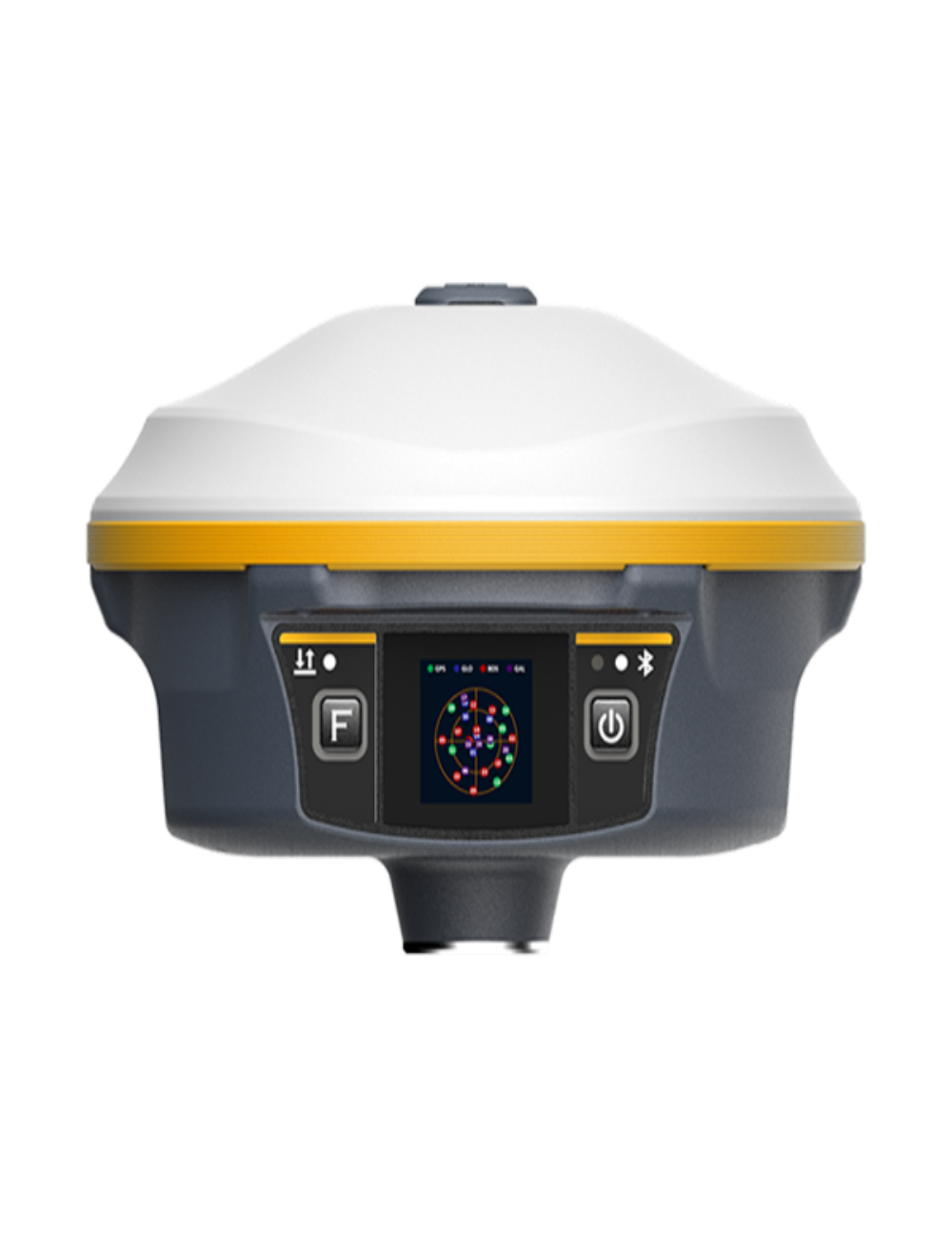

The G5 stands out with it's HD 1.3-inch color LCD touch screen with high brightness and low power consumption, which is convenient and efficient to complete touch settings, information browsing, function settings.

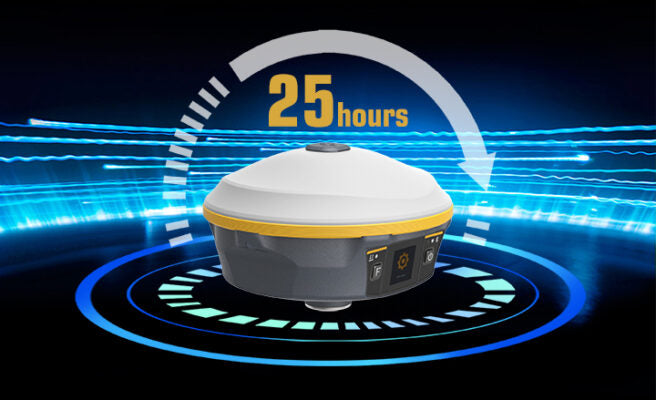

Despite its powerful capabilities, the G5 is incredibly lightweight and compact, weighing only 1350 grams while maintaining high strength. This makes it easy to handle and transport on the field. Galaxy G5 uses a built-in 10000mAh ultra-large capacity Li-ion battery, which can last 25 hours of continuous work (Static) benefits from low power consumption circuit design. The Type-C interface is used on G5 that it can support fast charging through a charger with PD protocol, and it can be full charged in 4 hours.

The G5 includes an integrated high-performance automatic compensator with IMU (Inertial Measurement Unit) technology that efficiently corrects coordinates to the pole tip. This advanced feature allows users to rapidly and precisely measure or stake out points without the need for meticulous receiver leveling, resulting in a significant productivity boost of up to 30% for surveyors.

What's more, this compensation capability remains accessible even if the fixed solution is temporarily lost. This means that surveyors can seamlessly continue their work once the fixed solution is reestablished, without the need to reinitialize the IMU module. The G5 offers an impressive tilt angle range, extending up to 60 degrees, ensuring reliable performance even in challenging terrain and conditions.
