Galaxy G2 (Spt)
Galaxy G2 (Spt)
Galaxy G2 (Spt)

Galaxy G2 (Spt)

Regular price$9,000.00
/

  • Available in 1-2 weeks
  • In stock, ready to ship
  • Backordered, shipping soon

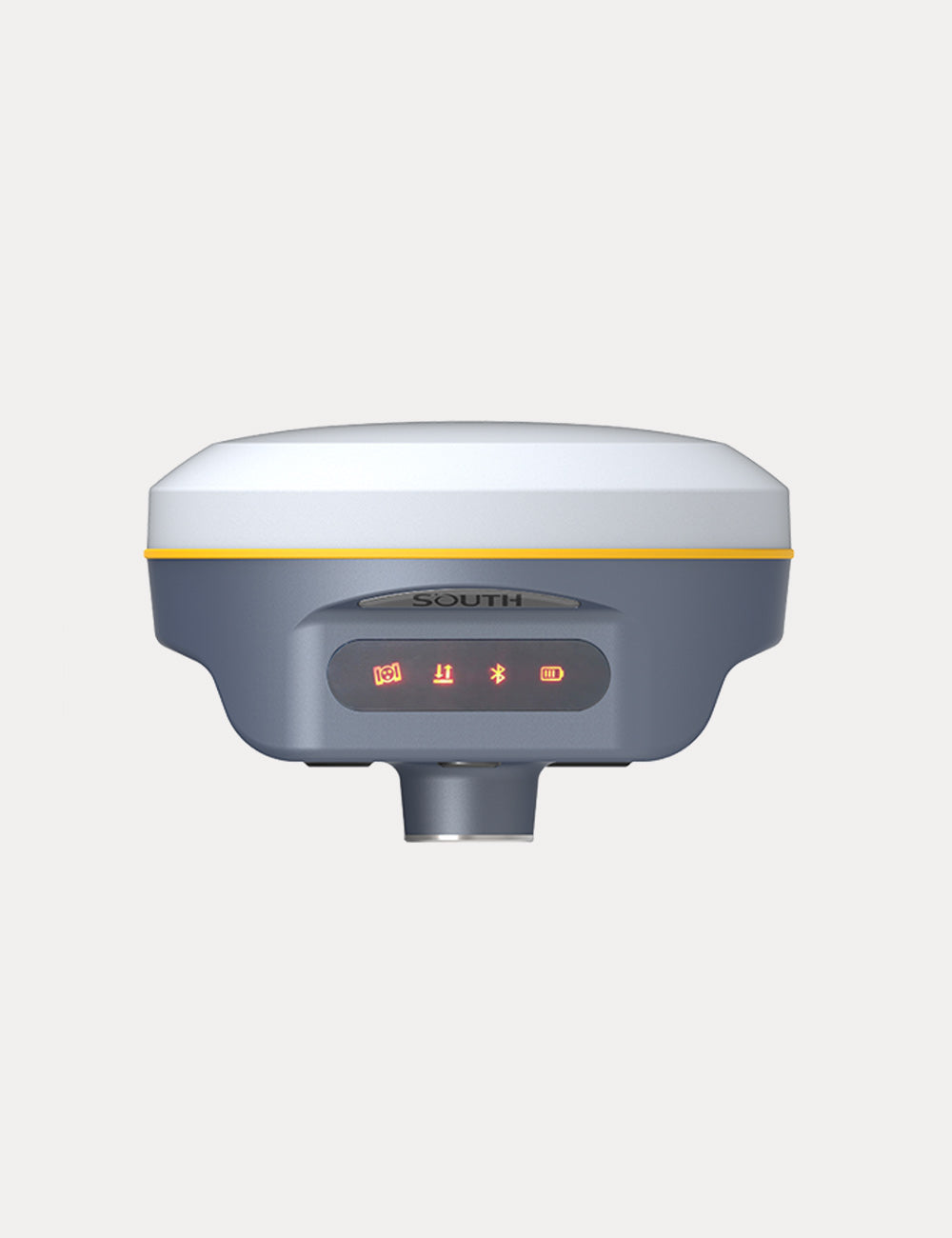

The South G2(Spt) GNSS epitomizes simplicity, elegance, and precision, boasting an ingenious and stylish design. Its highly integrated and layered construction sets it apart, making it notably smaller than the typical Galaxy series receivers. Crafted with a super strong magnesium alloy body shell, the G2 weighs a mere 850g, inclusive of the internal battery, ensuring unparalleled portability and convenience.

The South G2(Spt) GNSS unit boasts integration with a state-of-the-art System on a Chip (SoC), offering several benefits including superior processing, low power consumption, effective interference signal suppression, and the ability to acquire top-quality observation data from satellite constellations.

Paired with Septentrio's latest Mosaic X5 1760 channel GNSS module, the G2 delivers centimetre-level precision within seconds. It achieves this remarkable accuracy by efficiently tracking signals from GPS, GLONASS, BEIDOU, GALILEO, and QZSS satellite systems.

The G2 receiver features a Micro-SIM slot and a modem for 4G LTE/3G WCDMA/2G GSM connectivity, as well as Wi-Fi, Bluetooth, and a built-in VHF radio. Its IMU technology eliminates the need for precise receiver levelling, enhancing efficiency. Featuring a 6800mAh battery, a universal type-C interface, and a remarkable 15-hour operation, the G2 receiver is engineered for extended and versatile performance.

Manufacturer: South
Board: Septentrio X5 Mosaic
Number of channels: 1760
Satellites: GPS, GLONASS, Galileo, Beidou (Compass), QZSS, SBAS
Operating mode: Statics, RTK, Stop&Go, PPK
Connectivity: 4G  Micro-sim, Wi-Fi, Bluetooth & VHF radio
IMU Tilt: Enabled
Weight: 850 Grams
Battery: 15 Hours
Output: NMEA
Compatibility: 12d, Carlson Layout

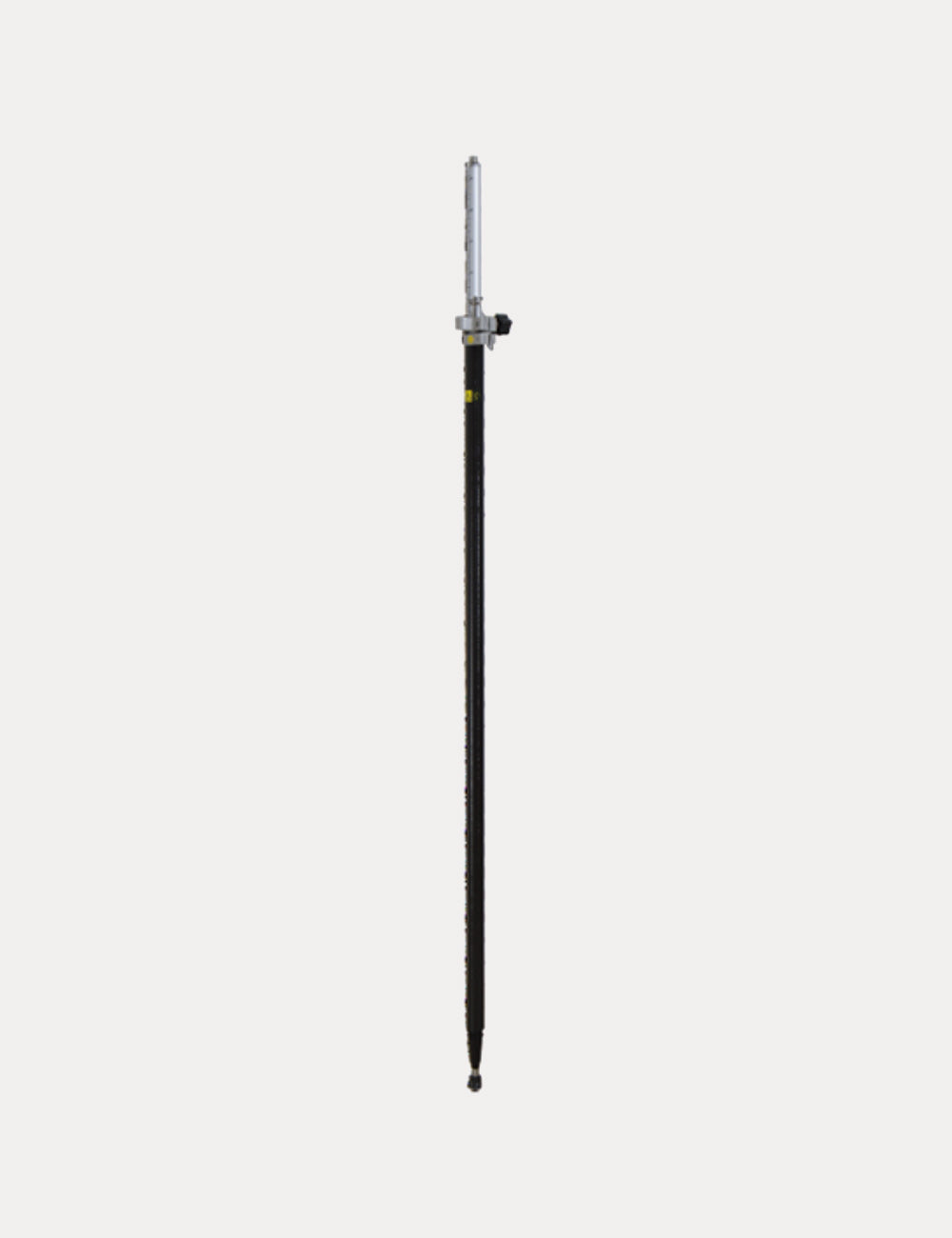

Pole: CLS25 Included

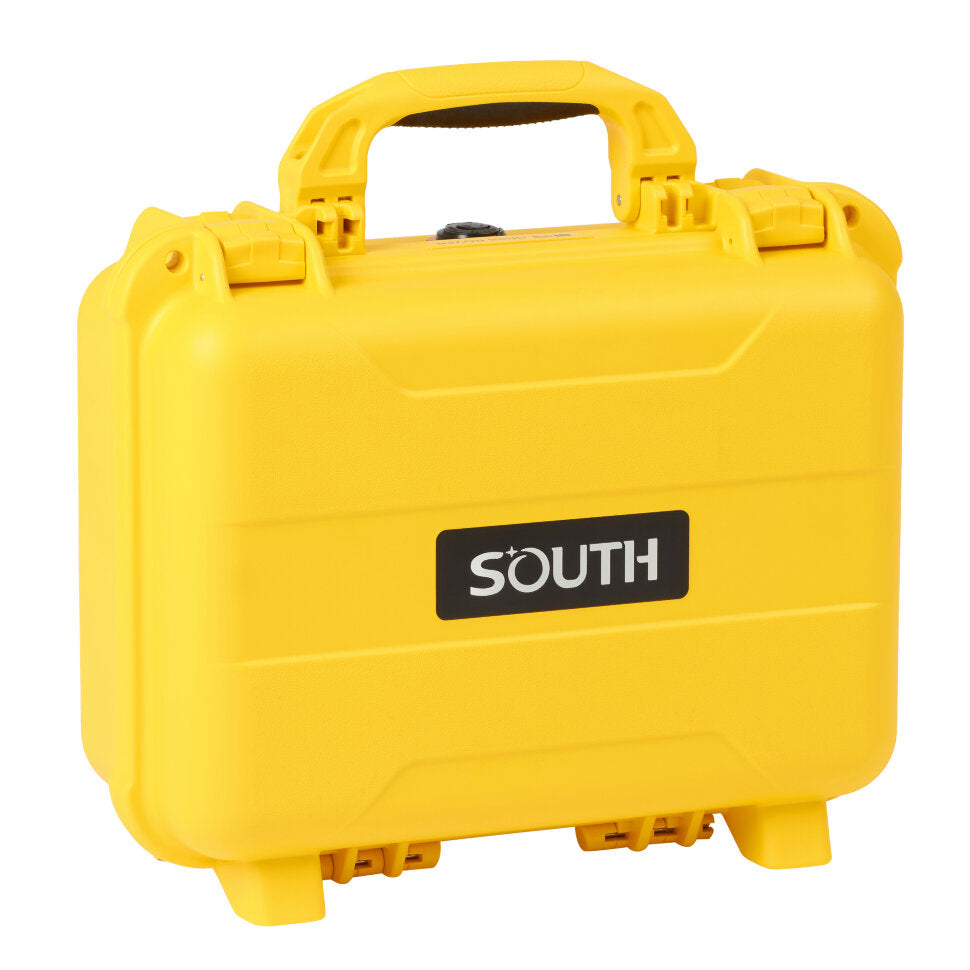

Case: Included


Brochure

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

The G2(Spt) includes an integrated high-performance automatic compensator with IMU (Inertial Measurement Unit) technology that efficiently corrects coordinates to the pole tip. This advanced feature allows users to rapidly and precisely measure or stake out points without the need for meticulous receiver leveling, resulting in a significant productivity boost of up to 30% for surveyors.

What's more, this compensation capability remains accessible even if the fixed solution is temporarily lost. This means that surveyors can seamlessly continue their work once the fixed solution is reestablished, without the need to reinitialize the IMU module. The G2(Spt) offers an impressive tilt angle range, extending up to 60 degrees, ensuring reliable performance even in challenging terrain and conditions.
